Description

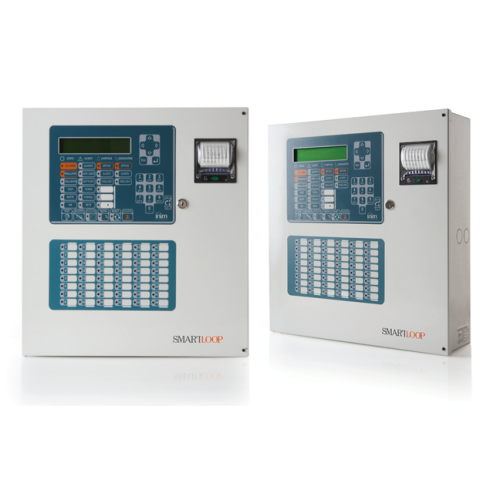

Networkable analogue addressable fire alarm control panel with 1 loop expandable to 8

The SmartLoop series of analogue addressable fire control panels marks a clear evolution from previous generations. This series has solutions to satisfy all market segments: from small domestic applications requiring 1 loop to large applications requiring 8 loops. At maximum configuration a SmartLoop system can support 30 control panels (arranged in a token-ring) and, if you consider that each control panel can manage up to 8 loops, and that each loop can accommodate as many as 240 devices, it is clearly apparent that the cutting-edge technology of the SmartLoop series has achieved excellence in application flexibility.

The SmartLoop series has been specially designed to provide enhanced features, best-in-class performance, simple end-user operation and trouble-free installation, all with the aim of helping the installer company to improve efficiency.

SmartLoop1010/P: Control panel with 1 loop, non-expandable, equipped with keypad, display and status LEDs. This model can be enhanced with a SmartLoop/PRN thermal printer.

SmartLoop2080/P: Control panel with 2 loops expandable to 8, equipped with keypad, display and status LEDs. This model can be enhanced with a SmartLoop/PRN thermal printer.

SmartLoop1010/G: Control panel with 1 loop, non-expandable, equipped with keypad and display.

SmartLoop2080/G: Control panel with 2 loops expandable to 8, equipped with keypad and display.

SmartLoop1010/S: Control panel with 1 loop, non-expandable, unequipped flush front.

SmartLoop2080/S: Control panel with 2 loops expandable to 8, unequipped flush front.
