Description

Conventional control panels with 2 zones or 4 zones expandable to 36

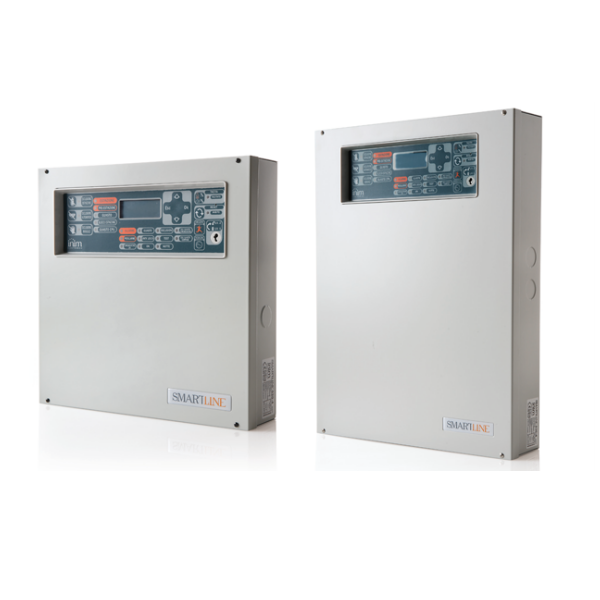

The SmartLine conventional fire-detection control panel series offers a 2 zone non-expandable model (SmartLine020-2), a 4 zone model expandable to 20 zones (SmartLine020-4) and a 4 zone model expandable to 36 zones (SmartLine036). The extreme compactness, trouble-free installation, uncomplicated programming procedures and simple end-user operation make this highly competitive control panel ideal for all small and medium applications, especially those applications where fast installation and programming are among the most important aspects of the system. The numerous functions (timers, equational logic, etc.), extensive flexibility (automatic output balancing, multifunction inputs, customizable outputs, gas function integration, etc.), and innovative connectivity capabilities (RS485 BUS for power supply stations, Internet connection, etc.), provide the tranquility of knowing for sure that this powerful tool is capable of satisfying every need of every type of installation.

– Certified EN12094-1
– Microcontroller board supervised by the CPU
– Indicator LEDs (status, disabled, faults)
– Supervised terminals for manual fire extinction commands
– Supervised terminals for STOP fire extinction commands
– Supervised terminals for pressure switch control
– Supervised output for fire suppression system activation
– Supervised output for signaling activation (pre-extinguish)
– Supervised output for “Gas in area” signaling
